Click the download link above and the driver files will start downloading Extract the files from the.zip file into a known location (right click the.zip file and EXTRACT contents) Go to the folder with your extracted contents, and run the 'Setup.exe' (32-bit) or 'SetupAMD64.exe' (64-bit) file, and follow the instructions to complete the setup. Ethernet to serial device server provides access to one RS232 serial port. Up to 230,400 data transfer rates, coupled with 1 Mbps line drivers deliver uncompromising performance. Brainboxes' ES range provides a simple, instant cable replacement providing network integration. The latest software and drivers for all brainboxes product ranges, sorted by operating system and range. Including: Windows 7, Server 2008, Vista, Server 2003, XP, 2000, 98 & older.

• 1 Port Isolated RS-232 USB to Serial Adapter
• Isolation: Avoid electrical damage to your expensive equipment
• High Retention USB connector with 50cm USB cable
• Works where many other USB to Serial devices do not
• Industrial Specification IP-50 rated -40 °C to +80 °C / -40 °F to +176 °F
• Lifetime Warranty and Support

Drivers Brainboxes Port Devices Replicator

Description

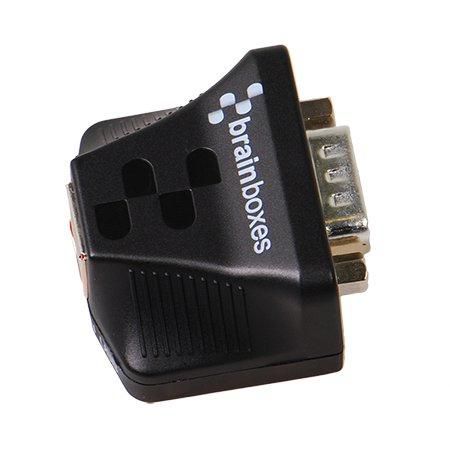

Tough ultra small isolated USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection.

Avoid electrical damage to your expensive equipment with isolation. Brainboxes US-159 is fully compliant with IEC 61000-4-2, meaning your equipment is immune to electrostatic discharge up to 8kV of contact discharge or 15kV of air discharge.

We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10 with additional drivers for Raspberry Pi, Mac OS X and Linux.

Customer Feedback

Great products. Excellent quality.

ENZ Engineering, Berlin

This is the only device of this type we have found thatworks with this system and makes the COM ports available in Windows

Oncology Systems Ltd

Great products and brilliant to see still manufactured inUK

AI Automation

Fantastic job keep up the good work!

Vibra-Technics

I've purchased a number of these now and haven't had a problem with any of them.

Somfy Projects

Brainboxes are great products. Very stable & reliable.

Winner Hotel Software

Product is good, rigid, and suitable for 'wind turbine' applications

Sembcorp ‹›

Drivers Brainboxes Port Devices Lucie

Tech Spec

Serial Port
Ports	1
Protocol	RS232
Connector	DB9 Connector - 9 Pin Male
Tx FIFO Size	512
Rx FIFO Size	512
Operating Distance	EIA - RS232 Standard
Cable	USB cable Type A to B (0.5 metre ~ 1.5ft)
Serial Port Settings
Max Baud Rate	921,600
Data Bits	7 or 8
Parity	Odd, Even, None, Mark or Space
Stop Bits	1 or 2
Tx/Rx Modes	Point to Point
General
PCB Layers	4
Operating Temperature Range	-40 °C to +80 °C / -40 °F to +176 °F
Industrial Standard	Yes
Power Consumption	100mA @ 5V
Product Weight	0.024 kg, 0.85 ounces
Product Dimensions	42x41x22 mm, 1.7x1.6x0.9 inches
Packaged Weight	0.155 kg, 5.47 ounces
Packaged Dimensions	160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)	837324003802
Operating System Compatibility
Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Interface
USB 2.0	480 Mb/s USB 2.0 data rates.
